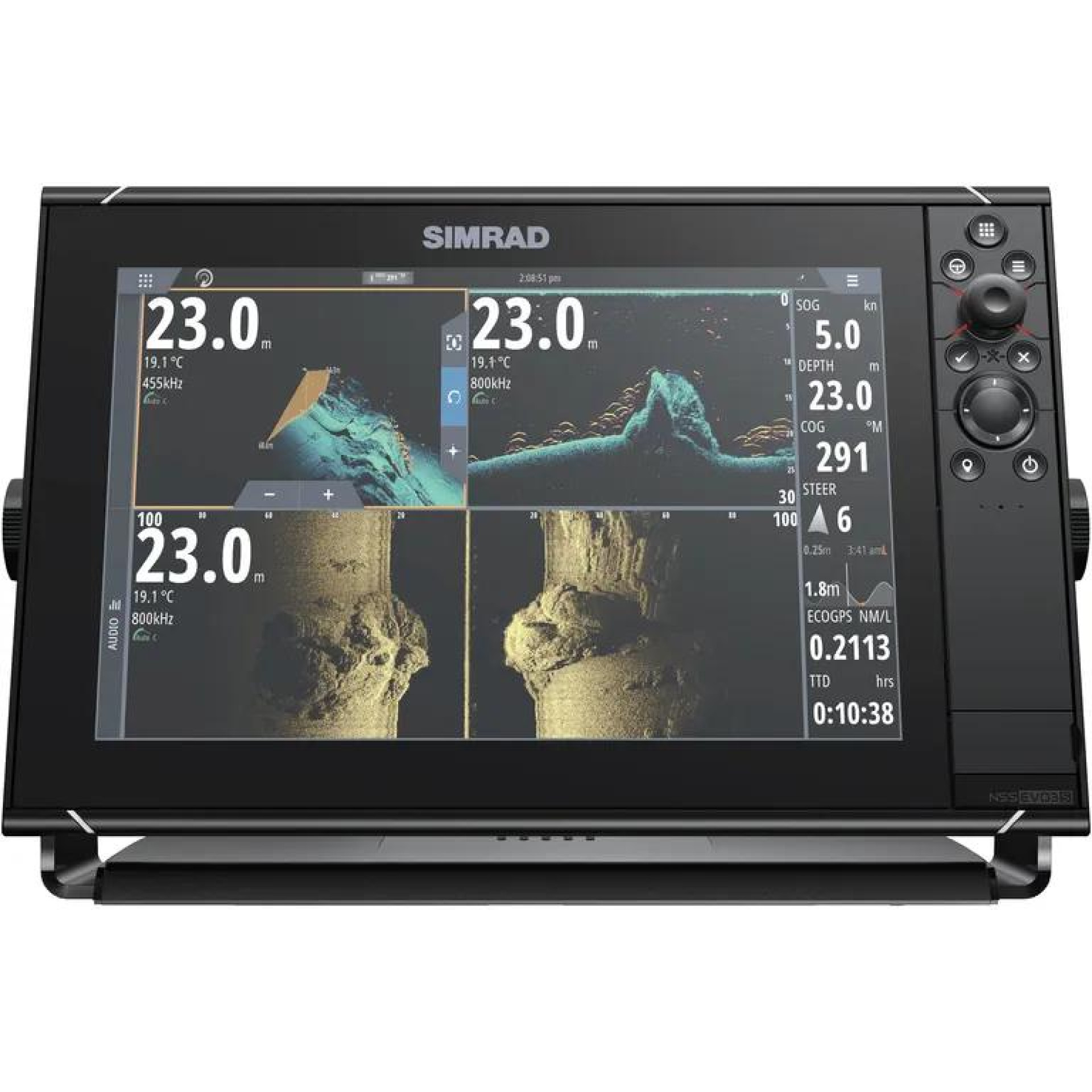

The Simrad NSS12 evo3S is a 12-inch multifunction chartplotter and fishfinder designed for demanding recreational and offshore boating applications. It features a high-visibility SolarMAX IPS optically bonded touchscreen, iMX 8 high-performance processor, built-in 10 Hz GNSS, integrated 1 kW CHIRP echosounder, C-MAP charting, Wi-Fi, Ethernet, and NMEA 2000 connectivity. This particular version is the No HDMI Video Outport model.

Specifications

• Brand: Simrad
• Model: NSS12 evo3S
• Product Type: Multifunction Chartplotter / Fishfinder
• MPN: 000-15403-002
• Screen Size: 12 inches
• Display: SolarMAX IPS optically bonded TFT
• Resolution: 1280 × 800
• Brightness: 1,200 nits
• Controls: Multi-touch touchscreen + keypad
• Processor: iMX 8 high-performance processor
• GPS: Built-in 10 Hz GNSS
• GPS Compatibility: GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS
• Wi-Fi: Built-in
• Bluetooth: Built-in
• NMEA 2000: 1 × Micro-C port
• NMEA 0183: Supported
• Ethernet: 2 × Ethernet network ports
• Sonar: Built-in 1 kW CHIRP echosounder
• Sonar Ports: 2 × 9-pin Xsonic ports
• Sonar Compatibility: CHIRP, 50/200 kHz, HDI, TotalScan, LSS HD and ForwardScan
• Radar Compatibility: Simrad HALO Pulse Compression Radar and compatible radar systems
• Cartography: Preloaded C-MAP charts
• Internal Storage: 16 GB
• MicroSD: 2 slots
• Video: 2 × composite video inputs
• HDMI Video Output: No
• Autopilot: Full autopilot control and commissioning
• AIS: Supported
• Waterproof Rating: IPX6 / IPX7
• Operating Temperature: -15°C to +55°C
• Supply Voltage: 10–31.2 V DC
• Maximum Power Consumption: 28 W
• Dimensions: 13.84 × 8.87 × 3.82 inches
• Weight: 6.83 lb
• Mounting: Bracket or panel mount
• Transducer: Not included

Key Features

• 12-inch high-visibility SolarMAX IPS display
• 1,200-nit brightness
• Touchscreen and keypad operation
• High-performance iMX 8 processor
• Built-in 10 Hz GNSS receiver
• Integrated 1 kW CHIRP sonar
• Dual sonar/transducer connectivity
• ForwardScan and compatible StructureScan support
• Preloaded C-MAP charting
• Built-in Wi-Fi and Bluetooth
• NMEA 2000 and Ethernet networking
• HALO radar compatibility
• Integrated autopilot control
• AIS support
• TripIntel trip planning
• C-MAP routing support
• No HDMI video output on this specific variant

What's Included

• Simrad NSS12 evo3S display
• Bezel trim
• Power cable kit
• U-bracket kit
• Panel mounting kit
• Documentation

Transducer not included.
