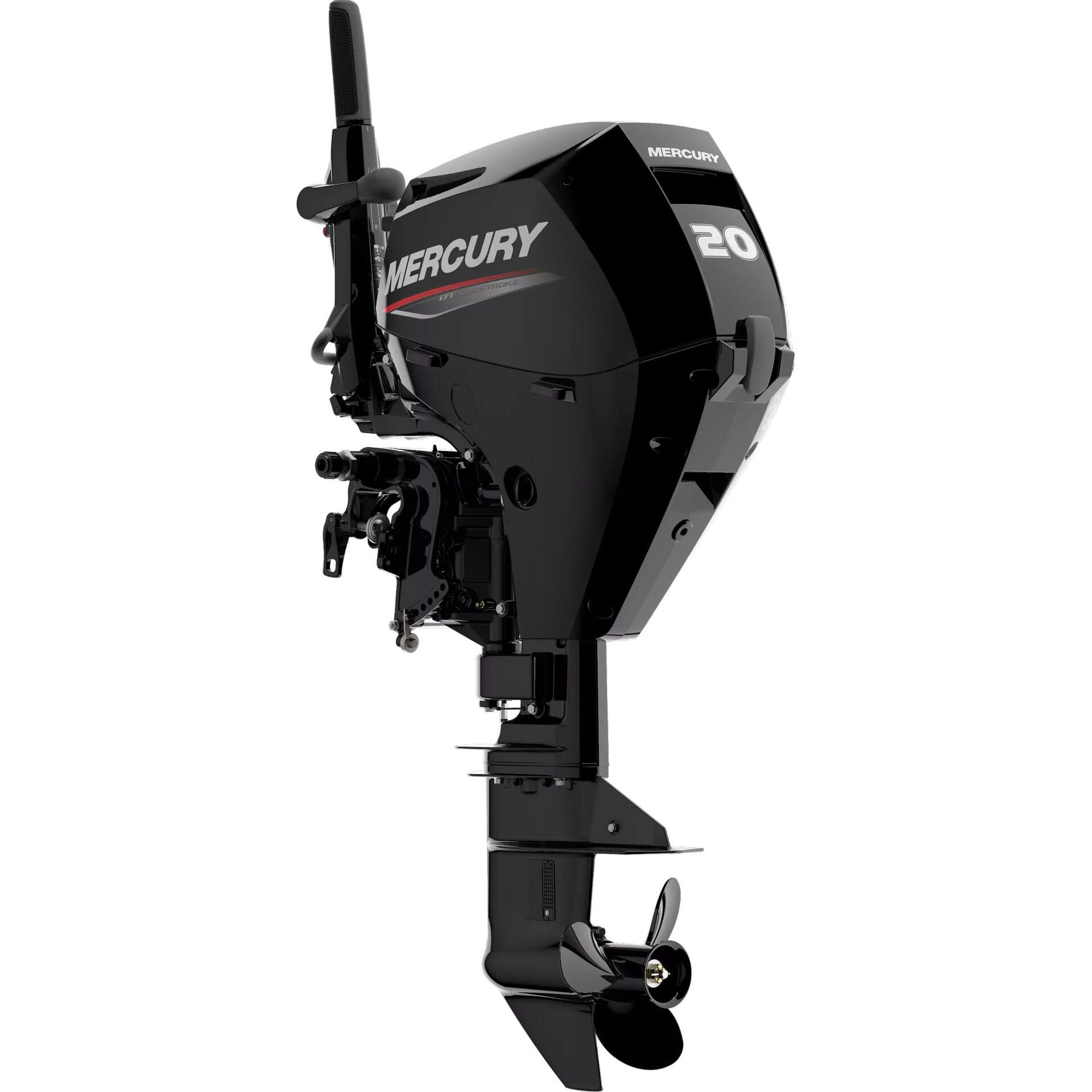

The 2027 Mercury 20HP Tiller Outboard Motor is a lightweight and reliable 4-stroke marine engine designed for fishing, utility, and recreational boats. It delivers smooth acceleration, responsive tiller steering, excellent fuel efficiency, and dependable performance for everyday boating.

Specifications:

• Engine Type: Inline 2, SOHC, 4-Stroke
• Displacement: 333 cc (20.3 cu.in.)
• Bore & Stroke: 61 x 57 mm (2.40" x 2.24")
• Full Throttle RPM Range: 5700 - 6200 RPM
• Alternator Output: 12V, 145W, 12A
• Dry Weight Range: 103-127 lbs
• Rated Power: 20 HP
• Fuel Delivery: EFI
• Steering Type: Tiller
• Shaft Length: 15", 20"
• Starting System: Rope, Electric
• Cooling System: Water-cooled with thermostat
• Ignition System: CDI with electronic spark advance
• Exhaust: Through prop
• Lubrication System: Wet sump
• Oil Capacity: 1.0 L (0.26 gal)
• Trim Range: 6-position manual or power tilt
• Tilt Range: 73 deg. tiller lock for trailering
• Gear Ratio: 2.15:1
• Gear Shift: F-N-R
• Standard Propeller Type: 3-Blade Aluminum (9 1/4" x 10")
• Oil Pressure Alert: Standard
• Temperature Alert: Standard
• Rev Limiter: Standard
• Fuel Tank Capacity: 3.2 gal (12 L)

Factory Warranty: 3 years. Warranty begins on date of purchase
