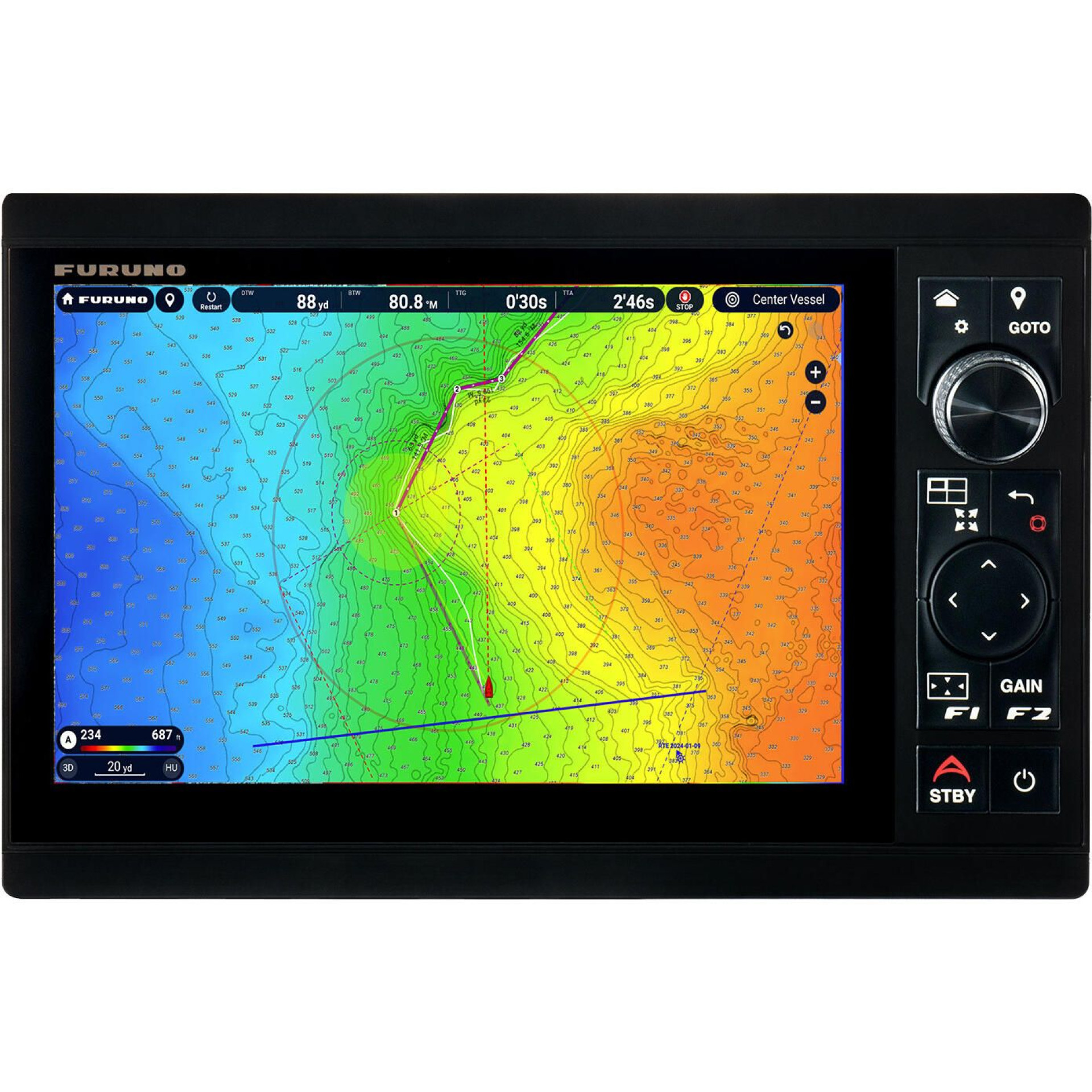

The Furuno NavNet TZtouchXL TZT10X is a 10.1-inch hybrid-control multifunction display designed for recreational boats, fishing vessels, and workboats. It combines a high-resolution IPS touchscreen with Furuno's RotoKey™ control and dedicated physical buttons, providing intuitive operation even in challenging sea conditions.

Features:

• Lightning-fast 10" Hybrid Control displays
• New TZ MAPS for highly-detailed navigation and fishing charts
• Purchase and update charts directly from MFD with Internet connection
• Power-packed 100W and 200W Open Array NXT Solid-State Doppler and X-Class Magnetron Radars with 3.5, 4, or 6' antenna options (not included)
• 24" and 19" Solid-State Doppler Radome Antenna options (DRS4DNXT and DRS2DNXT, not included)
• Built-in Dual Channel 1kW TruEcho CHIRP™ and CW Fish Finder
• High-power 2/3/5kW TruEcho CHIRP™ DFF3-UHD
• Built-in 235kHz or 455kHz CHIRP Side-Scan
• Powerful hexacore processor for rapid response
• Deepwater DFF3D Multibeam Sonar for up to 300 m depth and 200 m Side-Scan, with Personal Bathymetric Generator (PBG)
• Add a variety of optional remote controllers, including the MCU-006 and MCU-006H (not included)
• Video Converter Kits stream compatible Sonar video data directly to TZtouchXL MFDs
• Furuno's exclusive Fish-It, Drift-It, and Follow-It features save time and fuel, and increase fish catch (built-in power is 3kW; Connect a 5kW or 10kW transducer when using the BT-5 Booster Box, not included)

TZ Maps:

• Affordable, highly detailed charts purchased directly from MFD
• 1-year subscription with free updated
• Community edit and POI
• High resolution satelite photos
• 8 types of chart presentations
• Use your TZ Maps across multiple MFD's, TimeZero software, or TZ iboat app

Specifications:

• Dimensions: 11.8 x 7.7" (302 x 196 mm)
• Type: Color TFT multi touch IPS LCD
• Screen Size: 10.1" Wide
• Screen Resolution: FHD 1920 x 1200
• Screen Brightness: 900 cd/m2 (typical)
• Display Colors: 16,770,000 colors (Chart Plotter), Pl 64 colors (Radar/Fish)
