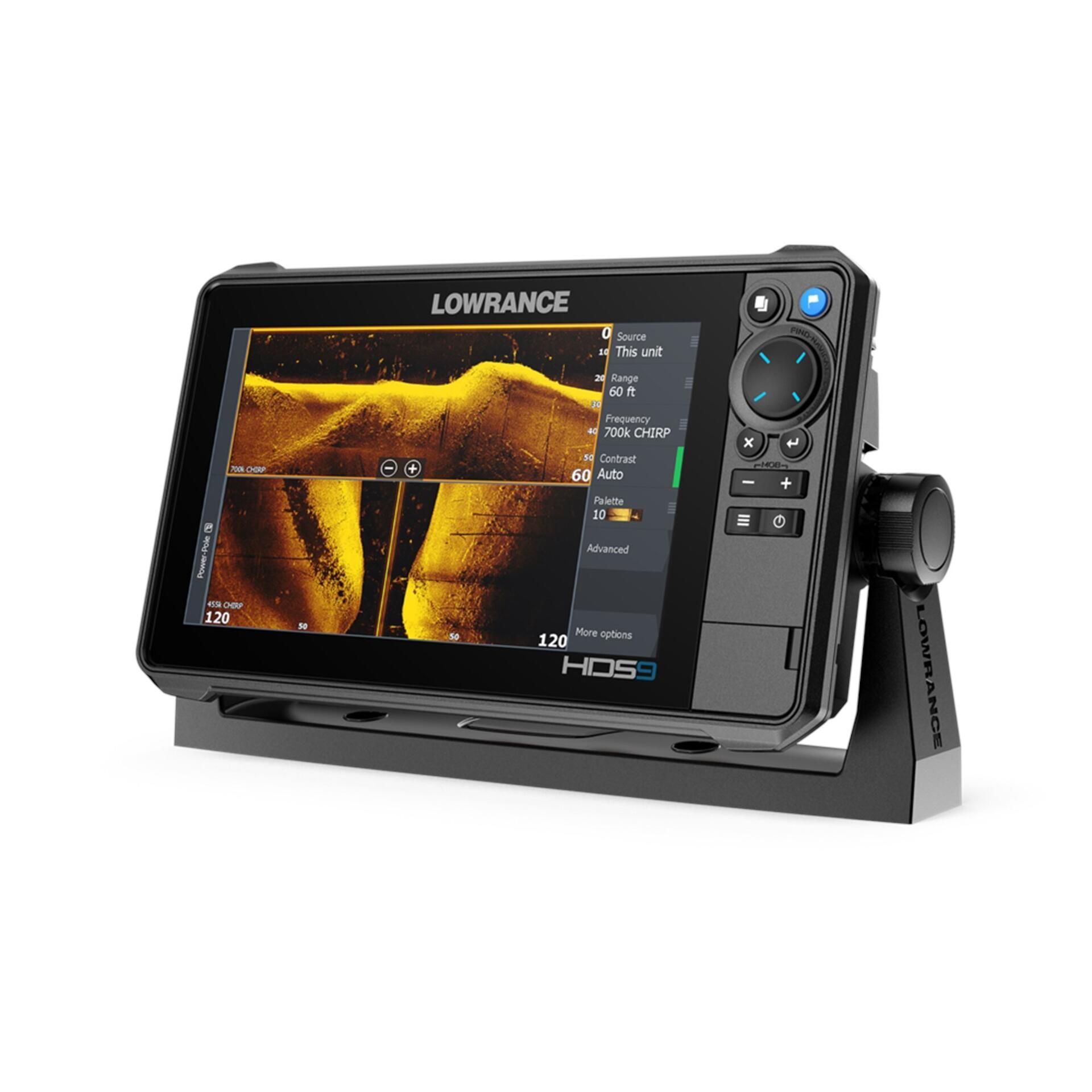

Lowrance HDS PRO 9 is a 9-inch premium fishfinder and chartplotter with C-MAP DISCOVER OnBoard, advanced sonar capabilities, built-in GPS, and marine networking. This model does not include a transducer.

Features:

• Preloaded C-MAP® DISCOVER OnBoard charts with 1-foot contours on 19,000+ US Lakes, 9,400+ Canadian Lakes or worldwide basemap
• Real-time mapping available with C-MAP® Genesis Live
• Support for new ActiveTarget® Scout and Ghost® Trolling Motor 360 chart overlay views
• Touchscreen control of Power-Pole® anchors, Ghost® Trolling Motor, Autopilot and Lowrance Outboard Pilot
• NMEA 2000®, Wireless and Bluetooth®, connectivity – plus smartphone notifications
• Wide range of optional chart upgrades including C-MAP® REVEAL, Navionics®, Florida Marine Tracks and more

Specifications:

• Backlight Color: Pure White LED
• Display Resolution: 1280 x 720
• Screen Brightness: >1200 Nits
• Viewing Angles: 80° top/bottom, 80° left/right
• Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic
• Ethernet Ports: 2x 100 Mbit, 6 max MFD's on a network
• Connectivity Wi-Fi: Internal 802.11b/g/n and Compatible with WiFi-1 Module
• NMEA 2000 Connectivity: 1x Micro-C
• PC Connectivity: None
• SD Card Storage: 2 micro SD cards up to 32GB
• Video: Output: No; Input: Composite video RCA - singlechannel via optional adaptor
• Power Consumption Max: 2.9A @ 13.8V DC with Full Backlight, Sonar on
• Power Consumption Min: 2.0A @ 13V DC with Full Backlight, Sonar on
• Power Consumption Typical: 2.0A @ 13V DC with Full Backlight, Sonar on
• Recommended Fuse Rating: 3A
• Supply Voltage: 12V DC (10.8-17VDC)
• Correction: DGPS, WAAS
• GPS Receiver Channels: 16
• Position Accuracy: 20m RMS
• Time to First Fix: 30s
• Update Rate: 10 Hz
• Compass Safe: 2.1' (65 cm)
• Dimensions (W x H x D): 11.02" x 6.56" x 3.06" (280 x 166.7 x 77.7 mm)
• Mounting Type: Gimbal Bracket, Front Dash Flush Mount, Rear Dash Flush Mount
• Weight: 3.06 lb (1.39 kg)
