Lowrance HDS PRO 16 Fishfinder GPS Chartplotter with C-MAP DISCOVER OnBoard
Lowrance HDS PRO 16 Fishfinder GPS Chartplotter with C-MAP DISCOVER OnBoard
| Brand: | Lowrance |
| Product Code: | INT/MDL/050 |
| Availability: | In Stock |
-
$3,007.36

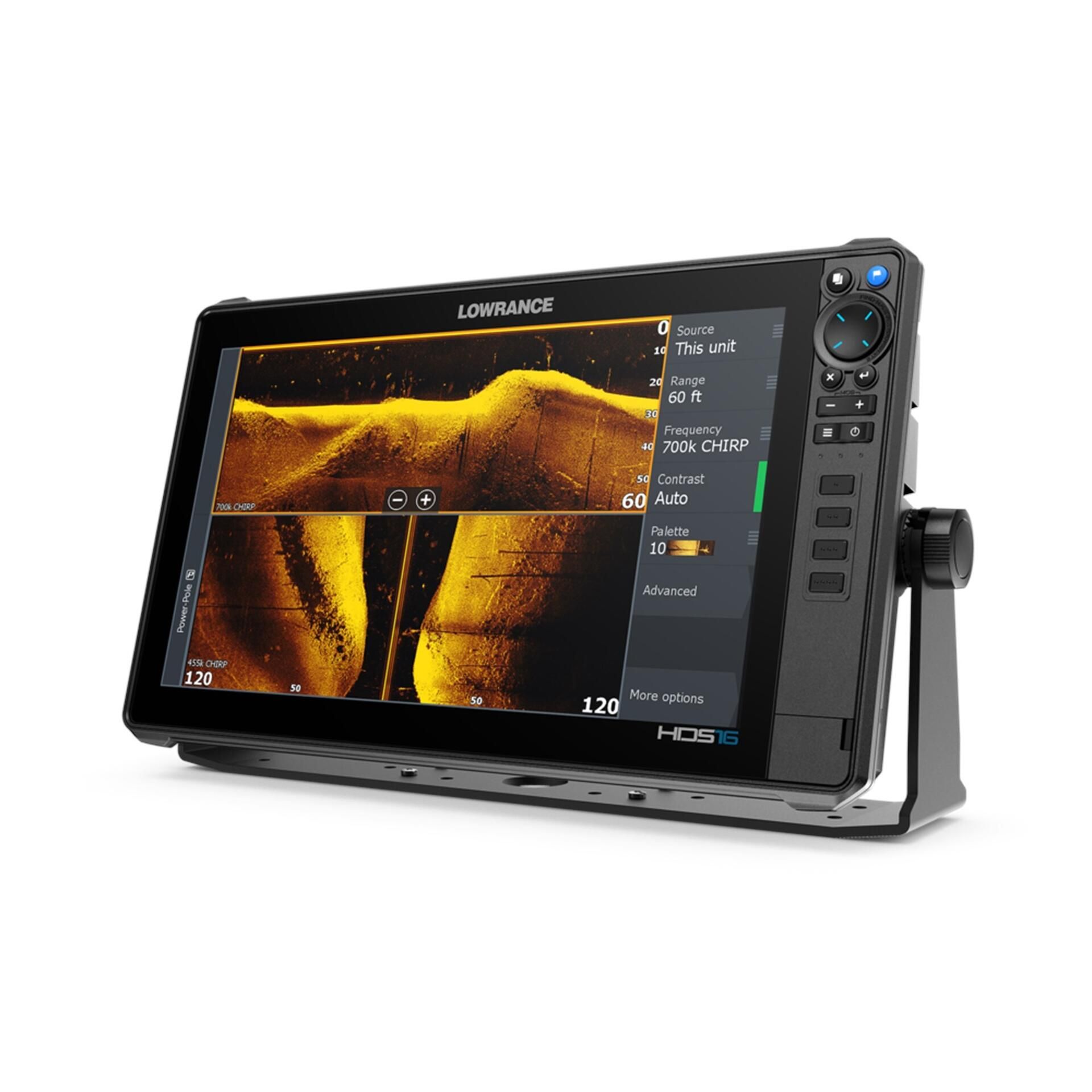

The HDS PRO 16 features a 16-inch SolarMAX HD touchscreen with 1920 × 1080 Full HD resolution and high brightness for improved visibility in demanding marine environments. The display provides a clear view of navigation charts, sonar information, waypoints, routes, and other essential boating data.
Features:
- Preloaded C-MAP® DISCOVER OnBoard charts with 1-foot contours on 19,000+ US Lakes, 9,400+ Canadian Lakes or worldwide basemap
- Real-time mapping available with C-MAP® Genesis Live
- Support for new ActiveTarget® Scout and Ghost® Trolling Motor 360 chart overlay views
- Touchscreen control of Power-Pole® anchors, Ghost® Trolling Motor, Autopilot and Lowrance Outboard Pilot
- NMEA 2000®, Wireless and Bluetooth®, connectivity – plus smartphone notifications
- Wide range of optional chart upgrades including C-MAP® REVEAL, Navionics®, Florida Marine Tracks and more
Specifications:
- Backlight Color: Pure White LED
- Display Resolution: 1920 x 1080
- Screen Brightness: >1200 Nits
- Viewing Angles: 80° top/bottom, 80° left/right
- Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic
- Ethernet Ports: 2x 100 Mbit, 6 max MFD's on a network
- Connectivity Wi-Fi: Internal 802.11b/g/n and Compatible with WiFi-1 Module
- NMEA 2000 Connectivity: 1x Micro-C
- PC Connectivity: None
- SD Card Storage: 2 micro SD cards up to 32GB
- Video: Output: No; Input: Composite video RCA - singlechannel via optional adaptor
- Power Consumption Max: 4.1A @ 13V DC with Full Backlight, Sonar on
- Power Consumption Min: 3.0A @ 13V DC with Full Backlight, Sonar on
- Power Consumption Typical: 3.0A @ 13V DC with Full Backlight, Sonar on
- Recommended Fuse Rating: 5A
- Supply Voltage: 12V DC (10.8-17VDC)
- Correction: DGPS, WAAS
- GPS Receiver Channels: 16
- Position Accuracy: 20m RMS
- Time to First Fix: 30s
- Update Rate: 10 Hz
- Compass Safe: 2.1' (65 cm)
- Dimensions (W x H x D): 16.95" x 10.20" x 3.46" (430.5 x 259.2 x 77.7 mm)
- Mounting Type: Gimbal Bracket, Front Dash Flush Mount, Rear Dash Flush Mount
- Weight: 7.94 lb (3.6 kg)
