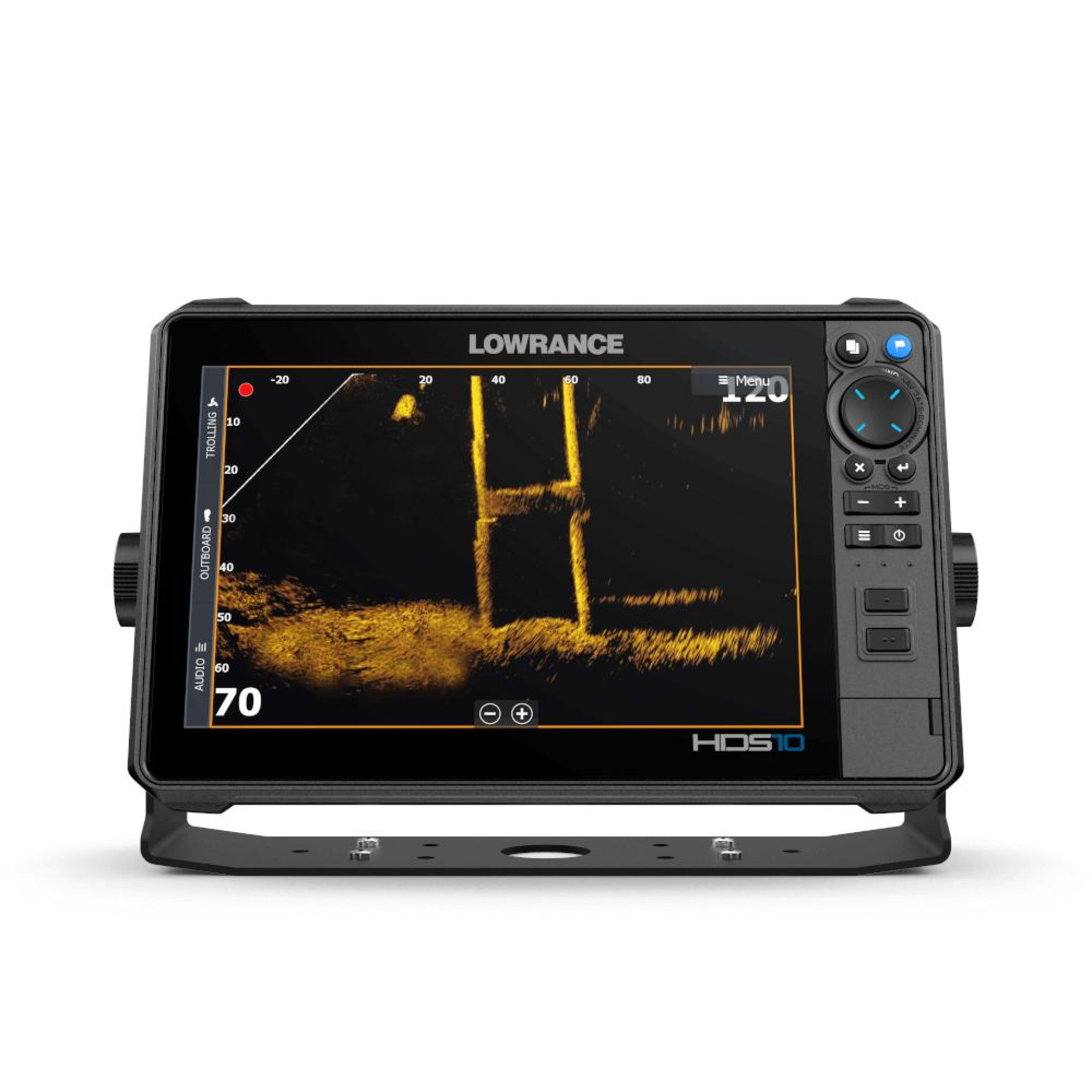

Lowrance HDS PRO 10 is a premium 10-inch fish finder/chartplotter featuring a SolarMAX HD IPS touchscreen, ultra-high-definition Active Imaging HD sonar, and compatibility with ActiveTarget 2 Live Sonar. The system combines advanced CHIRP, SideScan and DownScan Imaging with C-MAP charting, GPS, networking and comprehensive boat-control capabilities.

Specifications

• Brand: Lowrance
• Model: HDS PRO 10
• Type: Fish Finder / Chartplotter
• Display Size: 10"
• Display: SolarMAX HD IPS touchscreen
• Resolution: 1280 × 800
• Brightness: >1,200 nits
• Viewing Angle: 80° top/bottom, 80° left/right
• Sonar: CHIRP, Broadband, Active Imaging HD
• SideScan: Active Imaging HD
• DownScan: Active Imaging HD
• Live Sonar: ActiveTarget 2 compatible
• Maximum Sonar Depth: Up to 5,000 ft / 1,524 m, depending on transducer
• Sonar Output: Dual 1 kW capable, depending on connected transducer
• Mapping: C-MAP DISCOVER OnBoard
• GPS: Built-in
• Wireless: Wi-Fi & Bluetooth
• NMEA 2000: Yes
• Ethernet: Yes
• Product Code: 000-15984-001

Key Features

• 10" SolarMAX HD touchscreen
• Active Imaging HD sonar
• High-resolution CHIRP, SideScan and DownScan Imaging
• ActiveTarget 2 Live Sonar ready
• FishReveal technology
• C-MAP chart compatibility
• Genesis Live real-time mapping
• Built-in GPS
• NMEA 2000 networking
• Wi-Fi and Bluetooth connectivity
• Ethernet networking
• Compatible with Ghost trolling motor integration
• Compatible with ActiveTarget Scout
• Control of compatible Power-Pole anchors and Lowrance systems
• Supports multiple HDS PRO displays on a network
