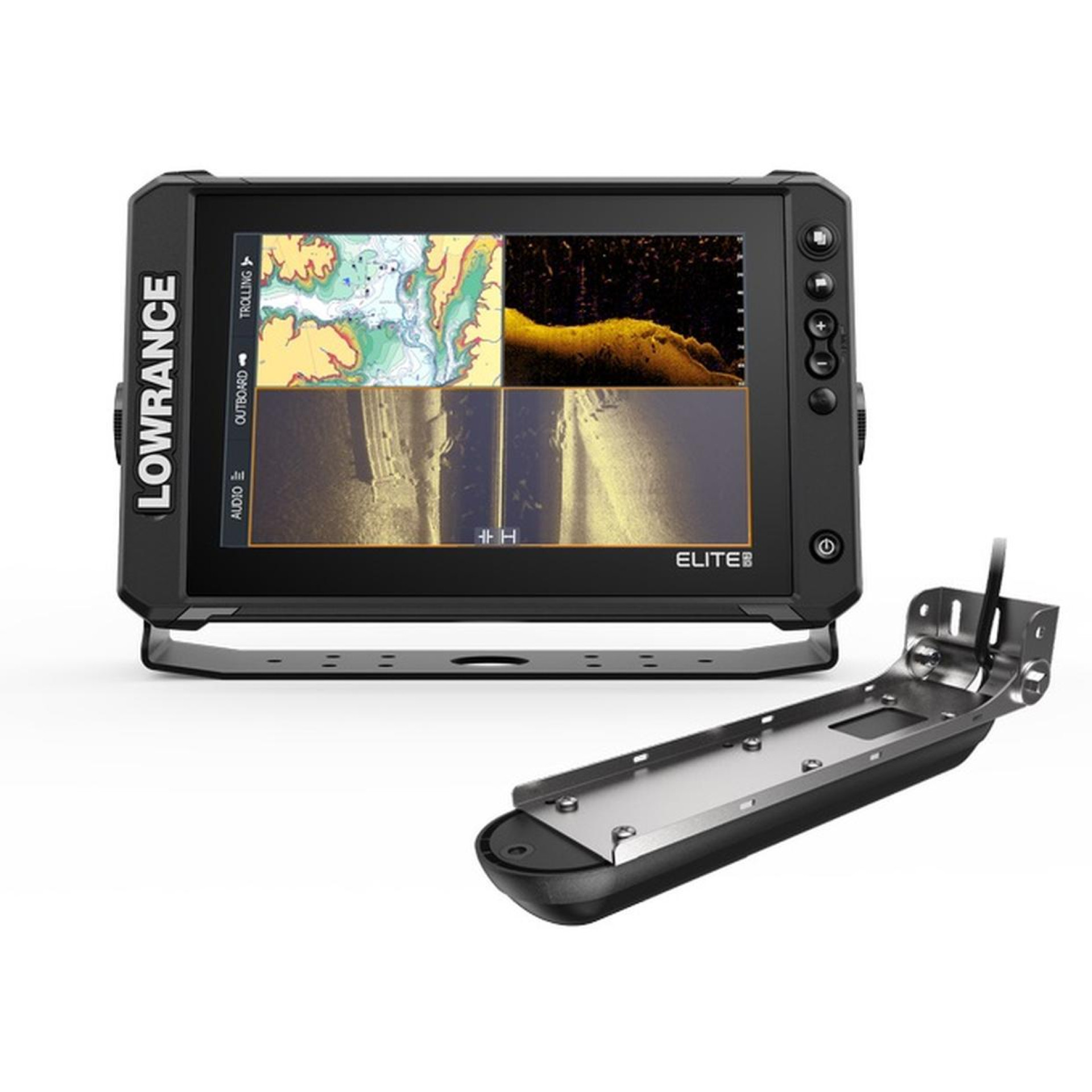

Lowrance Elite FS 10 is a 10-inch fish finder and chartplotter featuring a high-resolution IPS touchscreen, integrated CHIRP sonar, Active Imaging, SideScan and DownScan Imaging, plus compatibility with ActiveTarget and Active Imaging HD. It also provides integrated GPS, C-MAP charting, wireless connectivity, NMEA 2000 and Ethernet networking for a complete fishing and navigation system.

Specifications

• Brand: Lowrance
• Model: Elite FS 10
• Type: Fish Finder / Chartplotter
• Display: 10" IPS touchscreen
• Resolution: 1280 × 800
• Brightness: >1,200 nits
• Viewing Angle: 85° top/bottom and left/right
• Sonar: CHIRP / Broadband
• Active Imaging: Yes
• SideScan: Yes
• DownScan: Yes
• ActiveTarget: Compatible
• ActiveTarget 2: Compatible
• Active Imaging HD: Compatible with S3100 module
• GPS: Built-in 10 Hz GPS
• Wi-Fi: Yes
• Bluetooth: Yes
• Ethernet: 1 × 100 Mbps
• NMEA 2000: Yes
• C-MAP: Compatible
• Navionics: Compatible
• Waypoints: Up to 3,000
• Routes: Up to 100
• Trails: Up to 100, with up to 10,000 points each

Key Features

• 10" high-resolution IPS touchscreen
• CHIRP sonar
• Active Imaging
• SideScan & DownScan Imaging
• FishReveal
• ActiveTarget 2 Live Sonar ready
• Active Imaging HD compatible with S3100
• Built-in high-sensitivity GPS
• C-MAP chart compatibility
• Navionics compatibility
• Wi-Fi & Bluetooth
• NMEA 2000 networking
• Ethernet connectivity
• Ghost and Recon trolling motor integration
• Power-Pole integration
