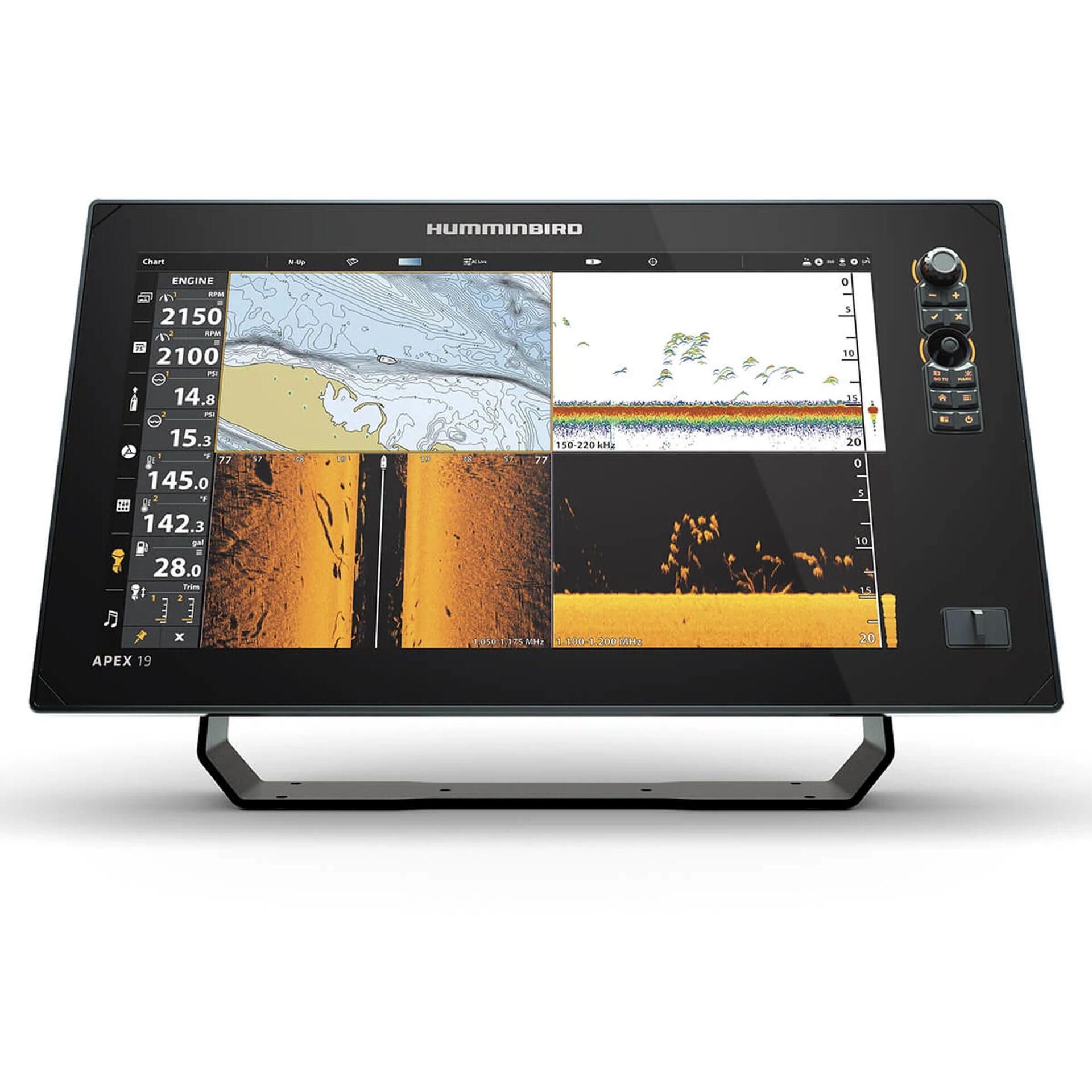

The Humminbird APEX 19 MSI+ is a premium marine chartplotter and fishfinder featuring an 18.5-inch Full HD touchscreen with 1920 × 1080 resolution. It combines advanced navigation, GPS, mapping and high-definition sonar technologies in a large multifunction display designed for serious anglers and marine applications.

Features:

• Full-HD Display with Cross Touch interface: APEX delivers eye-popping detail with a 1920H x 1080V display
• Customized Experience: Utilize an intuitive user interface and sidebar menu which provide customizable settings and view combinations to make your fishing experience all your own
• Dual Core Processor: Perform any task with speed and ease, thanks to the ultra-responsive interface and upgraded processing power
• Industry-leading Humminbird sonar: Equipped with MEGA Side Imaging+, MEGA Down Imaging+ and Dual Spectrum CHIRP sonar
• Dual Channel CHIRP Sonar: connect to any Humminbird sonar options, as well as a dedicated port for 2D CHIRP transducers up to 2kW
• Internal GPS and Humminbird Basemap: enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest
• Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere
• AutoChart Live: Create real-time maps of your fishing spots, with access to Humminbird LakeMaster features
• One-Boat Network: connect to compatible Minn Kota motors and Cannon Optimum downriggers
• Dual Ethernet ports: network products without the need for an external hub
• HDMI Compatible: See it all with independent HDMI In and HDMI Out ports on APEX. Connect and view accessory camera, video sources, and more
• Bluetooth: connect to compatible Talon and Raptor shallow water anchors or Cannon Optimum downriggers
• NMEA 2000 networking built-in: Connect an accessory NMEA 2000 network to your control head

Specifications:

• Sonar-Coverage: 20°, 42°, 60° & (2) 86° @ -10dB
• Dimensions (L x H x W): 11.6" x 20.27" x 5.33"
• Sonar-Optional: 50/83/200 kHz, Airmar High, Medium, and Low
• CHIRP - Frequencies Supported: Full Mode (28-75 kHz), Narrow Mode (75-155 kHz), Wide Mode (130-250 kHz), Optional Deepwater (28-250 kHz)
• Sonar-Frequencies Supported: 50/83/200/455/800 kHz & 1.2 MHz
• Depth-Sonar: 1,200' (standard transducer), 3,500' (optional Airmar CHIRP)
• CHIRP - Imaging-Frequencies Supported: 455 kHz DI+ (435-535 kHz), 455 kHz SI+ (405-505 kHz), 800 kHz DI+ (800-860 kHz), 800 kHz SI+ (780-840 kHz), MEGA DI+ (1100-1200 kHz), MEGA SI+ (1050-1175 kHz)
• Depth-Down Imaging: 125' (800 kHz), 250' (MEGA), 400' (455 kHz)
• Range-Side Imaging (Side-To-Side): 250' (800 kHz), 500' (MEGA), 800' (455 kHz)

Compatibility:

• AIS
• AutoPilot
• HDMI In/Out
• MEGA 360
• MEGA Live
• Minn Kota Built-In MEGA DI/SI
• Minn Kota i-Pilot Link
• Minn Kota Talon/Raptor
• Minn Kota US2 Sonar
• NMEA 2000
• One-Boat Network
• Radar

Included:

• Control head
• Screen cover
• Transom mount transducer
• Mounting hardware
• Power cable
• Gimbal mounting bracket
