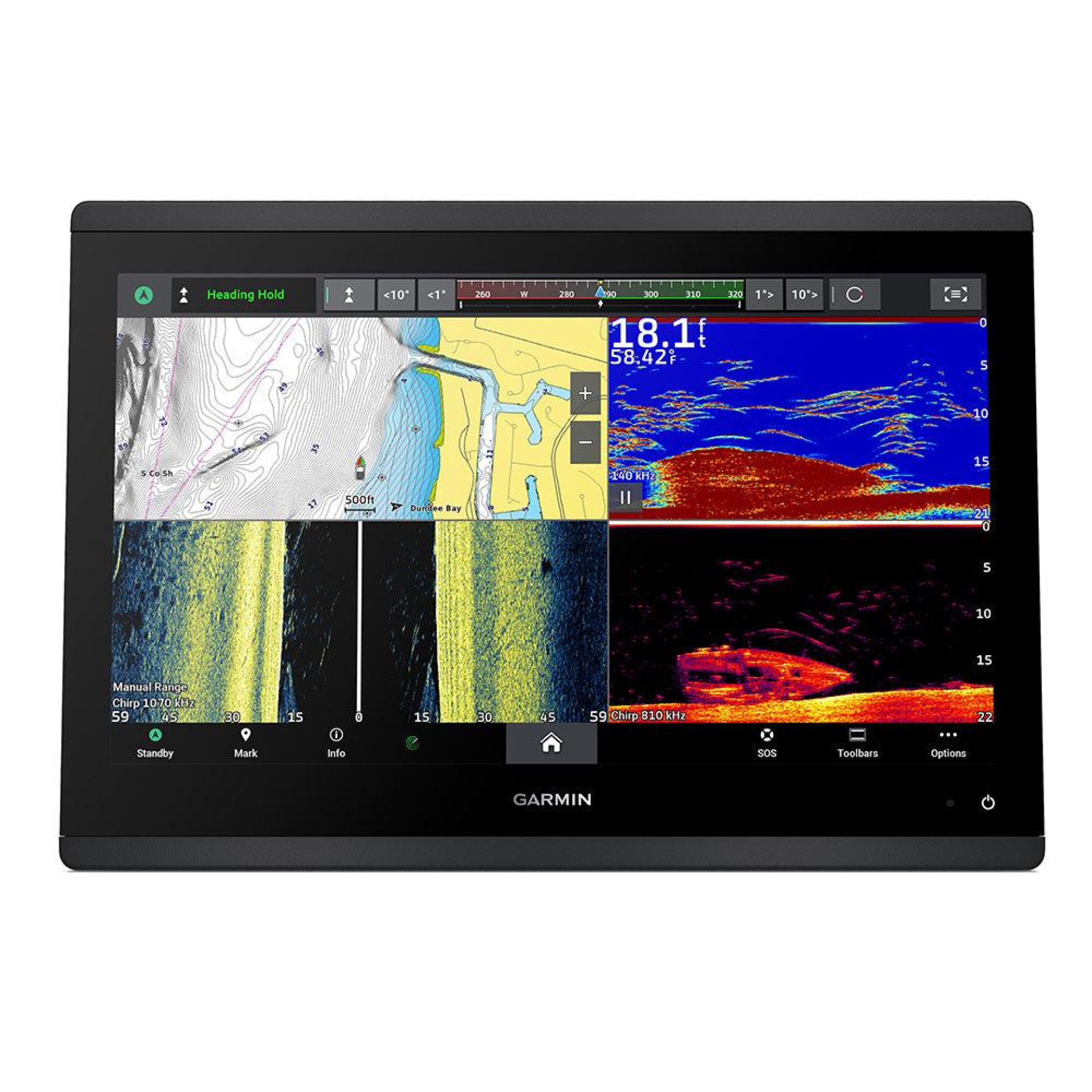

Garmin GPSMAP 1643xsv is a premium 16-inch marine chartplotter and sonar combo featuring a high-resolution FHD IPS touchscreen, built-in Garmin Navionics+ mapping, SideVü and ClearVü Ultra HD scanning sonar, and traditional CHIRP sonar. It provides advanced navigation, sonar imaging, networking and integration with Garmin marine systems, including compatible LiveScope and Force trolling motors.

Specifications

• Brand: Garmin
• Model: GPSMAP 1643xsv
• Product Code: 010-02919-03
• Type: Chartplotter / Fish Finder
• Display Size: 16"
• Display: FHD IPS touchscreen
• Resolution: 1920 × 1080 pixels
• Display Area: 13.6" × 7.7"
• Mapping: Garmin Navionics+
• GPS: Built-in
• Sonar: SideVü, ClearVü & Traditional CHIRP
• SideVü: Yes
• ClearVü: Yes
• Traditional CHIRP: Yes
• LiveScope Compatible: Yes
• Panoptix Compatible: Yes
• Wi-Fi: Yes
• microSD: 2 slots
• Waypoints: Up to 5,000
• Track Points: Up to 50,000
• Saved Tracks: Up to 50
• Navigation Routes: Up to 100
• Water Rating: IPX7
• Dimensions: 15.1" × 10.3" × 3.0"
• Weight: 9.7 lb / 4.4 kg

Key Features

• 16" high-resolution FHD IPS touchscreen
• Built-in Garmin Navionics+
• SideVü Ultra HD scanning sonar
• ClearVü Ultra HD scanning sonar
• Traditional CHIRP sonar
• Built-in GPS
• ActiveCaptain connectivity
• Wi-Fi and ANT wireless connectivity
• NMEA 2000 and Garmin Marine Network support
• Compatible with Garmin LiveScope
• Compatible with Garmin Force trolling motors
• OneHelm integration
• Auto Guidance+ navigation
• Garmin Quickdraw Contours
• Supports radar integration
