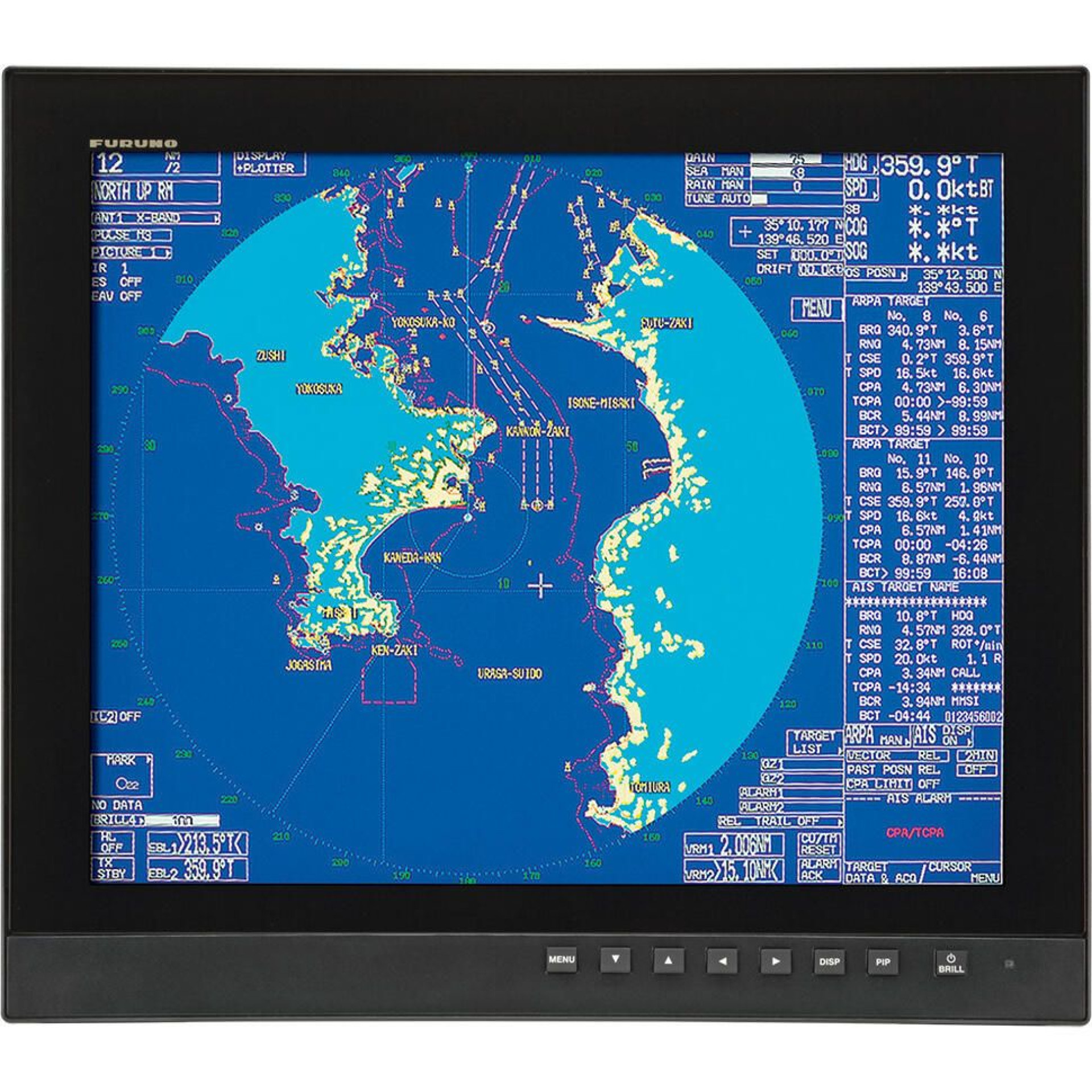

The Furuno MU192HD 19" Color LCD Marine Monitor is a high-brightness marine display designed for navigation, radar, sonar, sounder, and other onboard video systems. It features a 19-inch SXGA LCD, 1,000 cd/m² brightness, anti-reflective bonded glass, and HDMI, DVI-D, RGB, and composite video inputs for flexible marine system integration.

Specifications:

• Brand: Furuno
• Model: MU192HD
• Product Type: Color LCD Marine Monitor
• Display Size: 19"
• Display Type: Color TFT LCD
• Screen Size: 376.32 × 301.06 mm
• Resolution: 1280 × 1024 pixels (SXGA)
• Pixel Pitch: 0.294 mm
• Brightness: 1,000 cd/m²
• Viewing Angle: 160° total / 80° or more left, right, up and down
• Visible Distance: 1.02 m
• Anti-Reflective Glass: Yes
• LCD & Glass: Bonded construction for fog-free operation
• RGB Analog Input: 1
• DVI-D Input: 1
• HDMI Input: 1
• Composite Video Input: 1
• Composite Video Signal: NTSC/PAL
• USB: 1 × USB 1.1, for dimmer control
• Input Voltage: 12–24 VDC
• Operating Voltage Range: 10.8–31.2 VDC
• Power Consumption: 4.9–2.3 A
• Operating Temperature: -15°C to +55°C
• Relative Humidity: 93% or less at +40°C
• Water Protection: IP56 front panel / IP22 rear panel
• Vibration Standard: IEC 60945
• Installation: Flush Mount / Bracket Mount
• Compatible Applications: Radar, Sounder, Sonar, NavNet, cameras, computers and other marine electronics
• Picture-in-Picture: Yes
• Color: N1.0
