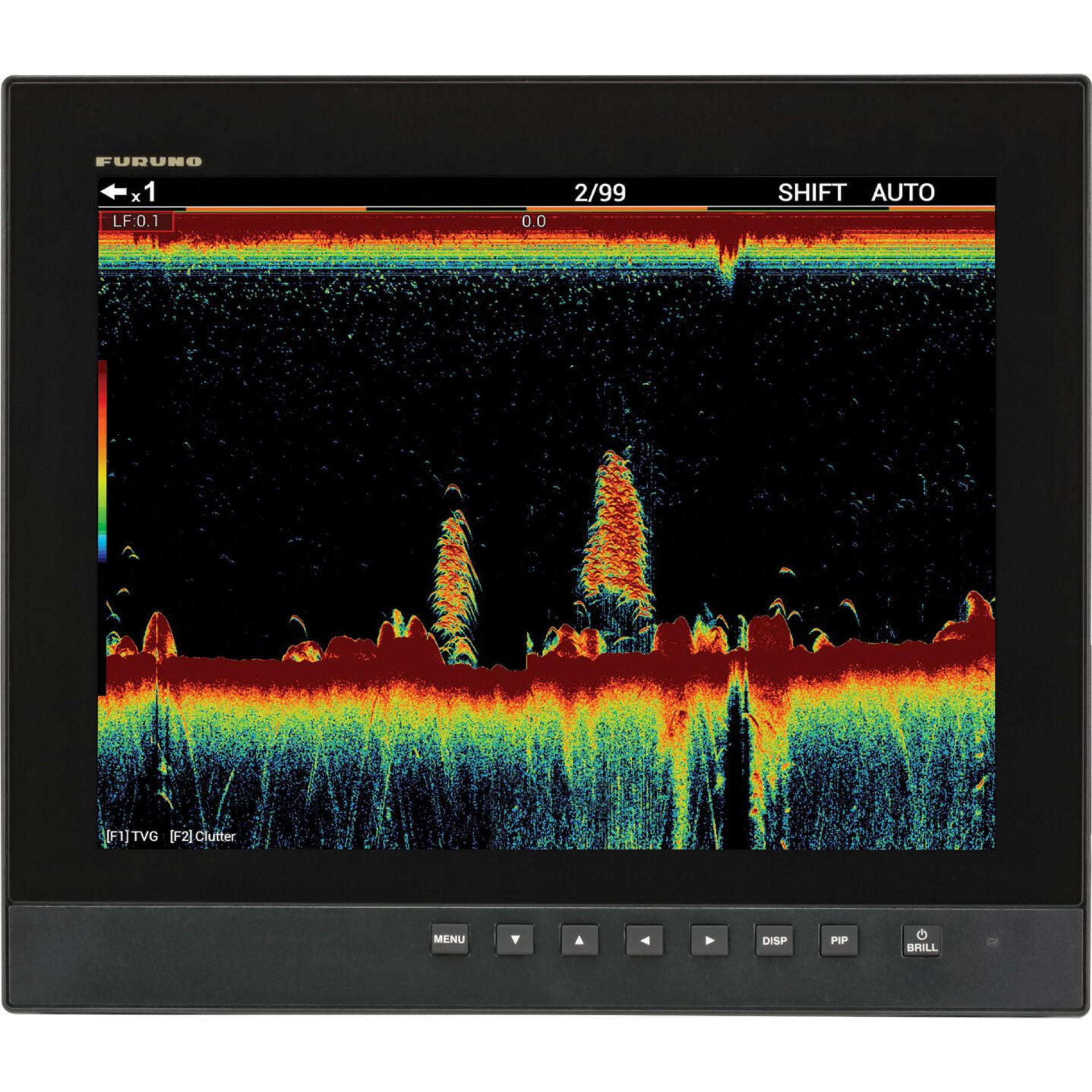

The Furuno MU152HD 15" Color LCD Marine Monitor is a high-brightness marine display designed for clear video viewing in demanding onboard environments. It features a 1,000 cd/m² LCD, 1024 × 768 XGA resolution, anti-reflective glass, HDMI, RGB, DVI-D and composite video inputs, and IP56 waterproof protection on the front panel. It can be used as a main or remote display for Furuno radar, sonar, sounder, NavNet systems, cameras, and other marine equipment.

Specifications:

• Brand: Furuno
• Model: MU152HD
• Product Type: Color LCD Marine Monitor
• Display Size: 15"
• Display Type: Color TFT LCD
• Resolution: 1024 × 768 pixels (XGA)
• Pixel Pitch: 0.297 mm
• Brightness: 1,000 cd/m²
• Contrast Ratio: 2,500:1
• Viewing Angle: 160° total / 80° or more left, right, up and down
• Anti-Reflective Glass: Yes
• LCD Bonding: Bonded LCD and glass for fog-free operation
• Video Inputs: 1 × RGB Analog, 1 × DVI-D, 1 × HDMI, 1 × Composite Video
• USB: 1 × USB 1.1 for dimmer control
• Signal Compatibility: NTSC/PAL composite video
• Built-In Scaler: Yes, accepts up to SXGA 1280 × 1024
• Input Voltage: 12–24 VDC
• Operating Voltage Range: 10.8–31.2 VDC
• Power Consumption: 2.5–1.3 A
• Operating Temperature: -15°C to +55°C
• Relative Humidity: 93% or less at +40°C
• Waterproof Rating: IP56 front panel / IP22 rear panel
• Installation: Flush Mount or Bracket Mount
• Marine Standard: IEC 60945 vibration compliance
• Primary Applications: Radar, Sonar, Sounder, Chartplotter, NavNet, Cameras and other marine electronics
• Visible Distance: 1.02 m
