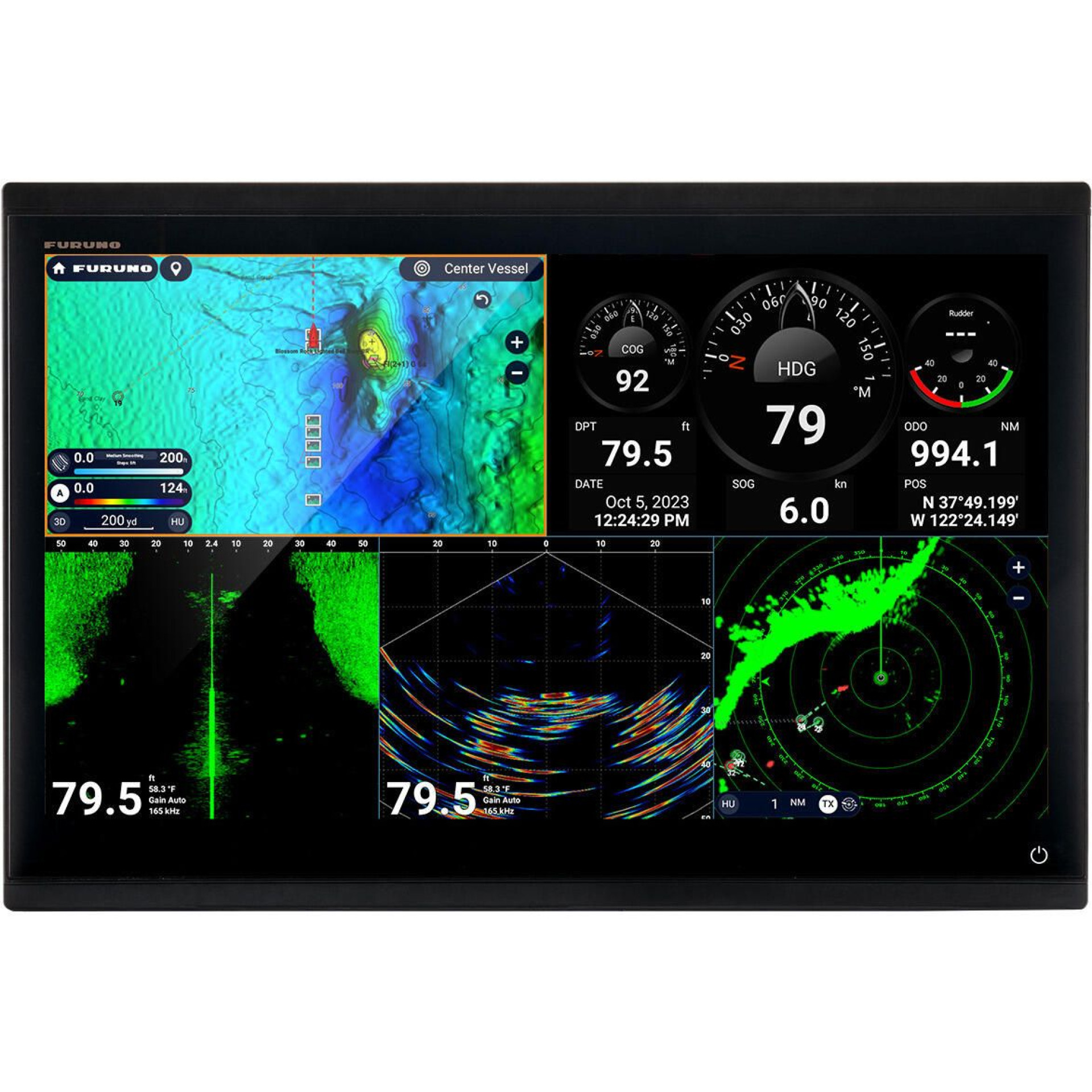

The Furuno TZT22X NavNet TZtouchXL 22" Multifunction Display is a large-format marine chartplotter designed for navigation, cruising, and sportfishing. It features a Full HD 1920 × 1080 all-glass IPS multi-touch display, TZ MAPS charting, Wi-Fi, NMEA 2000, radar and autopilot integration, and compatibility with high-power fish finders and DFF3D multibeam sonar.

Features:

• Lightning-fast 22" all-glass displays
• New TZ MAPS for highly-detailed navigation and fishing charts
• Purchase and update charts directly from MFD with Internet connection
• Power-packed 100W and 200W Open Array NXT Solid-State Doppler and X-Class Magnetron Radars with 3.5, 4, or 6' antenna options
• 24" and 19" Solid-State Doppler Radome Antenna options (DRS4DNXT and DRS2DNXT)
• Built-in Dual Channel 1kW TruEcho CHIRP™ and CW Fish Finder (16" model only)
• High-power 2/3/5kW TruEcho CHIRP™ DFF3-UHD
• Built-in 235kHz or 455kHz CHIRP Side-Scan (16" model only))
• Powerful hexacore processor for rapid response
• Deepwater DFF3D Multibeam Sonar for up to 300 m depth and 200 m Side-Scan, with Personal Bathymetric Generator (PBG)
• Add a variety of optional remote controllers, including the MCU-006 and MCU-006H
• Video Converter Kits stream compatible Sonar video data directly to TZtouchXL MFDs
• Furuno's exclusive Fish-It, Drift-It, and Follow-It features save time and fuel, and increase fish catch (built-in power is 3kW; Connect a 5kW or 10kW transducer when using the BT-5 Booster Box, not included)

TZ Maps:

• Affordable, highly detailed charts purchased directly from MFD
• 1-year subscription with free updated
• Community edit and POI
• High resolution satelite photos
• 8 types of chart presentations
• Use your TZ Maps across multiple MFD's, TimeZero software, or TZ iboat app

Specifications:

• Dimensions (L x W): 20.4" x 13.8"
• Weight: 12.6 lbs
• Screen Size: 21.5"
• Screen Resolution: FHD 1920 x 1080
• Voltage: 12-24V DC; 5.1-2.5A
