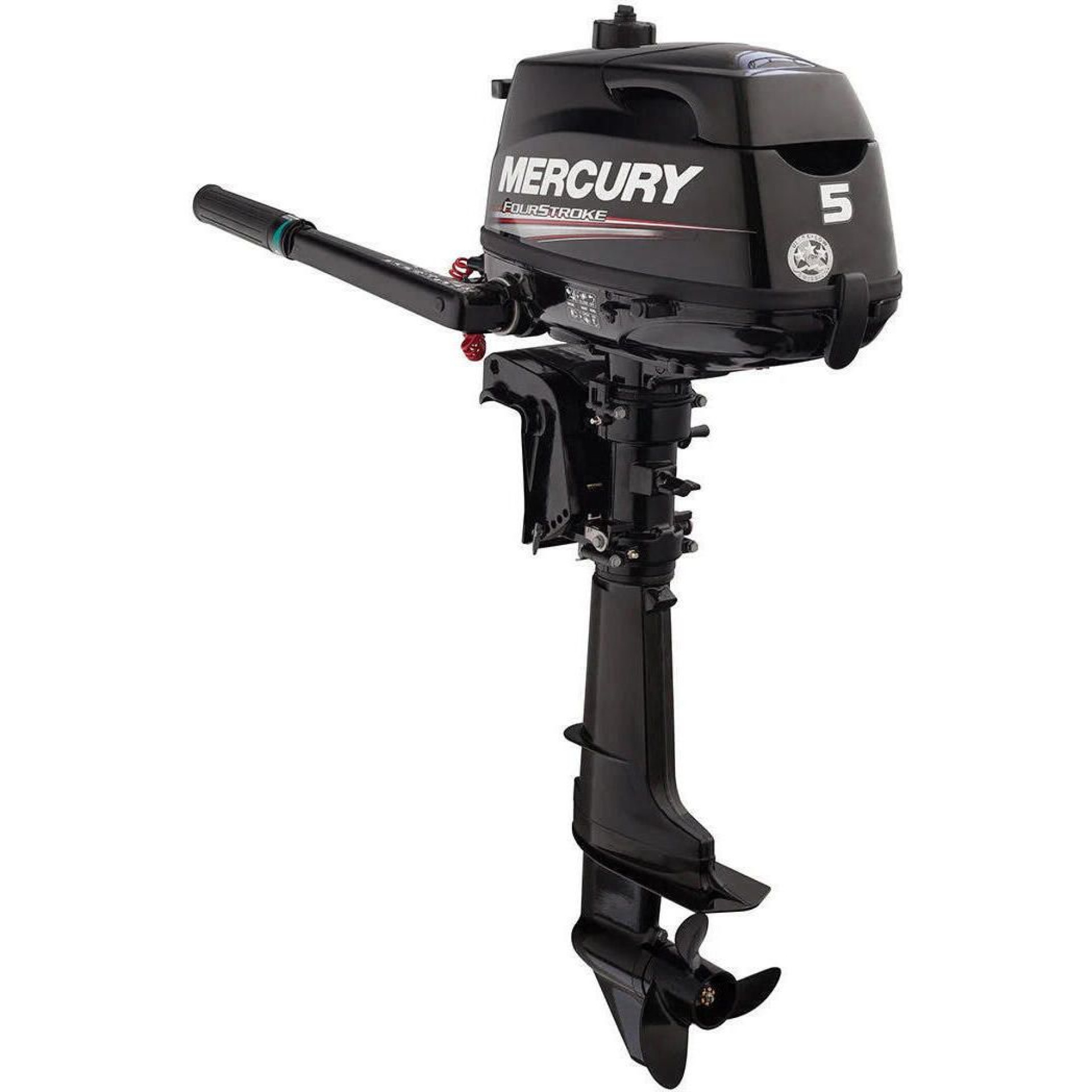

The 2027 Mercury 5HP Tiller Outboard Motor is a compact and reliable 4-stroke marine engine designed for small boats, dinghies, and recreational boating. It offers easy portability, smooth operation, fuel-efficient performance, and dependable power for convenient on-water use.

Specifications:

• Engine Type: 1 Cylinder, 4-Stroke
• Displacement: 123 cc (7.5 cu. in.)
• Bore & Stroke: 59 x 45 mm (2.32" x 1.77")
• Full Throttle RPM Range: 4500 - 5500 RPM
• Alternator Output: 12V, 50W, 4A
• Dry Weight Range: 57-61 lbs
• Rated Power: 5 HP
• Fuel Delivery: Carbureted
• Steering Type: Tiller
• Shaft Length: 15", 20", 25"
• Starting System: Manual
• Cooling System: Water-cooled with thermostat
• Ignition System: CDI with electronic spark advance
• Exhaust: Through prop
• Lubrication System: Wet sump
• Oil Capacity: 0.45 L (0.12 gal)
• Trim Range: 6-position manual
• Tilt Range: 70 deg.
• Gear Ratio: 2.15:1
• Gear Shift: F-N-R
• Standard Propeller Type (Diameter x Pitch): 8 3/8" x 7"
• Oil Pressure Alert: Standard
• Temperature Alert: Standard
• Rev Limiter: Standard
• Fuel Tank Capacity: 0.3 gal (1.1 L) internal, external capable (not included)
• Factory Warranty: 3 years. Warranty begins on date of purchase
